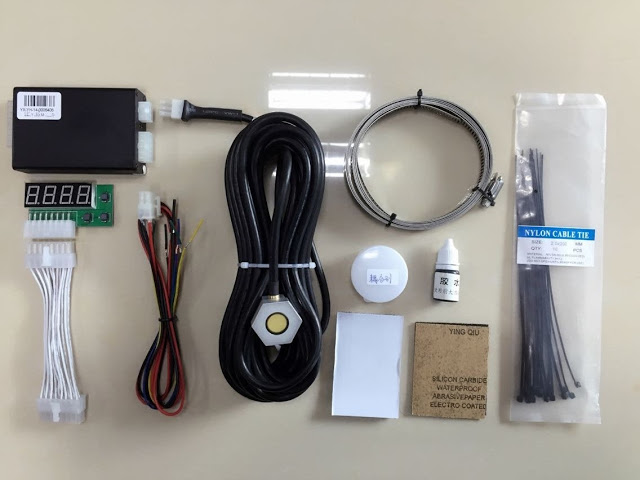

Digital Fuel Level Transmitter
Our Digital Fuel Level Transmitter gives less than 1mm accuracy levels in fuel level sensing. Employs innovative mechanical design to easy-fit any fuel tank without welding and other hurdles. It is IP 67 compliant and thus is made to work in harsh conditions.
- No Drillings/Breaking in tank, Easy Installation
- Serial port Output: RS232(default)/RS485
- Analogue Output: 0~5V(default) or 0~6V
- Baud Rates: Default 9600 or Customized Measuring Range: 1m(default) or 2m
- Material: Any liquid, Diesel or Gasoline
- Lowest Liquid Level Detection:5~6mm
- IP66 for detector, IP61 for controller box
Ultrasonic sensors depend on two separate devices: an ultrasonic transducer and a detector. An ultrasonic transducer is any device that converts energy into an ultrasonic frequency. Though dog whistles and several other devices can convert mechanical energy into an ultrasonic frequency, ultrasonic transducers are usually made from piezoelectric crystals that can change size when a voltage is applied to them. When an alternating current is applied to a piezoelectric crystal, it vibrates extremely fast and produces an ultrasonic sound wave. The detector is also made of a piezoelectric crystal, but produces a voltage when an ultrasonic frequency comes in contact with it, effectively producing the opposite results. A sensor calculates the time that it takes in between broadcasting the ultrasonic frequency and receiving the incoming waves.
